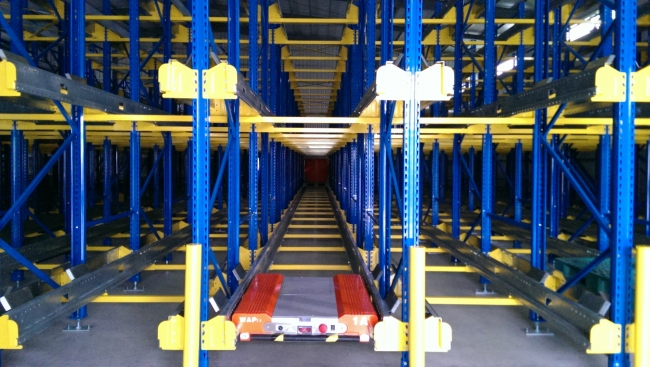

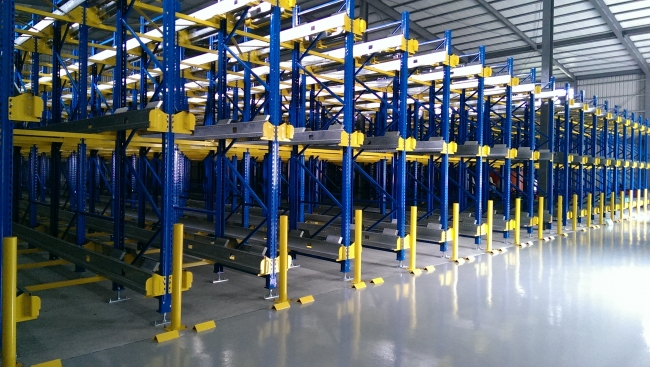

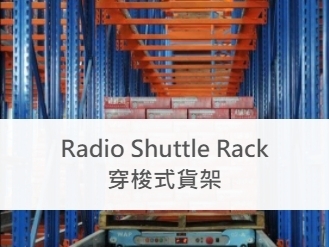

RADIO SHUTTLE RACKING 穿梭式貨架
Product Introduction 產品介紹
The shuttle racking system is a complete high-density storage system composed of racks, shuttle trolleys, and forklifts. This efficient storage method brings new options for improving warehouse space utilization.
穿梭式貨架系統是由貨架、穿梭台車以及堆高機組成完整的高密度存儲系統，這種高效率的存儲方式為提高倉庫空間利用率帶來新的選擇。
Best Fit For 適用行業
• Large quantities and small samples: food, beverage, chemical, and other single varieties are large in batches, and the items are unified
• Cold storage operation: reduce low-temperature operation time, improve efficiency and safety
• Time limit management: warehouses that have strict requirements on batches of items and require first-in-first-out operation management
• Increase storage capacity: maximize the storage space in the warehouse
• 多量少樣：食品、飲料、化工等單品種批量大，品項相對單一行業
• 冷庫作業：減少低溫作業時間，提高工作效率和作業安全性
• 期限管理：對物品批次有嚴格要求，需要先進先出作業管理的倉庫
• 增加庫容：存儲空間有限，需要最大化利用空間的倉庫
| $ | 數量 |
-

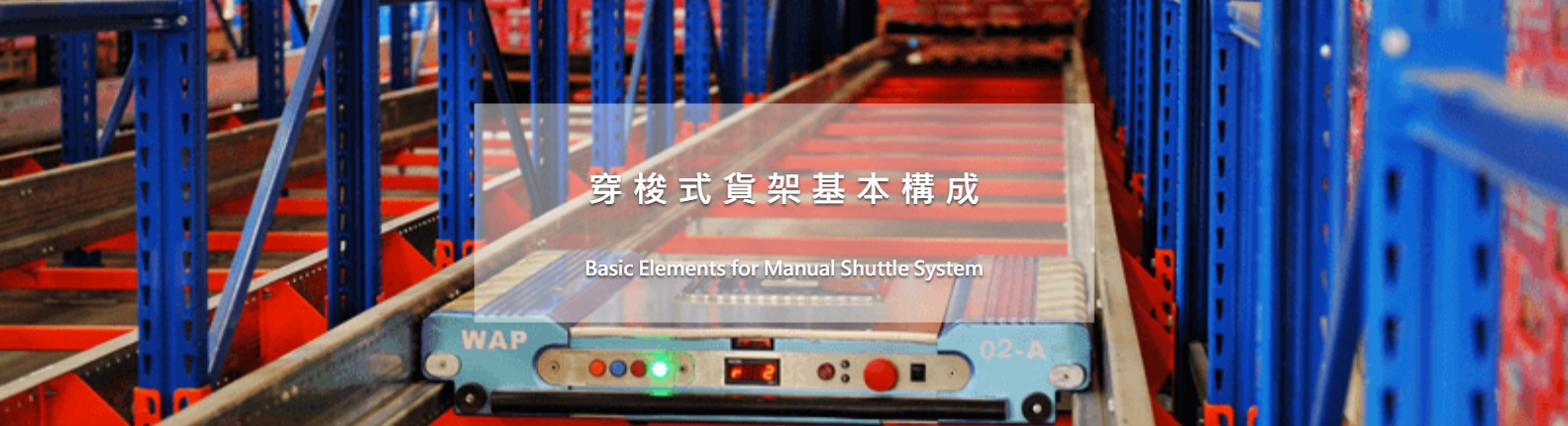

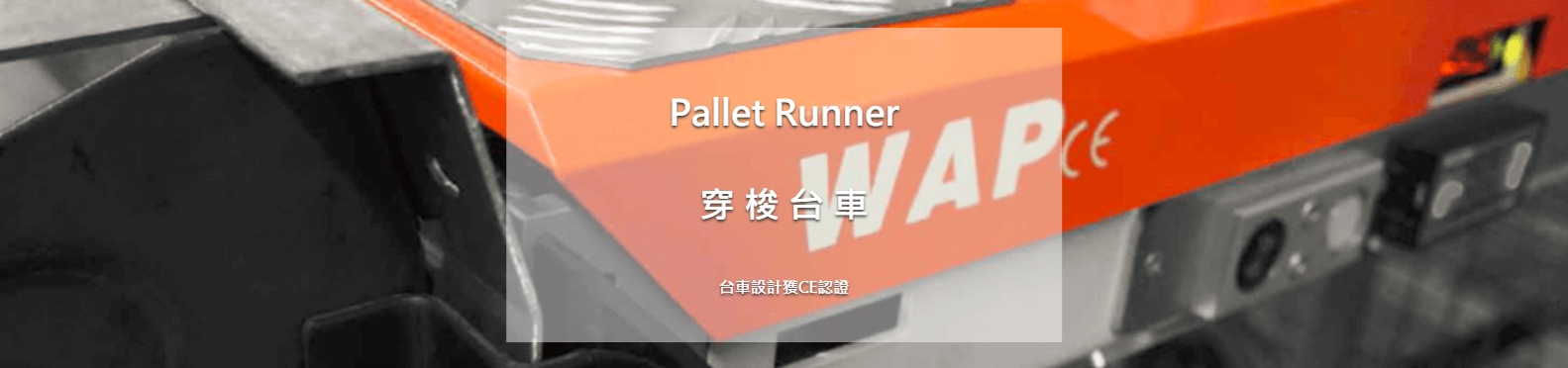

Racks 穿梭式貨架 Radio Shuttle Cart 穿梭台車 Forklift 堆高機 Remote 遙控器

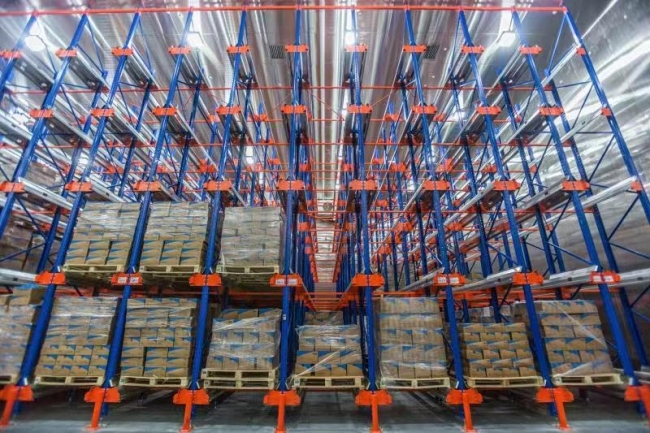

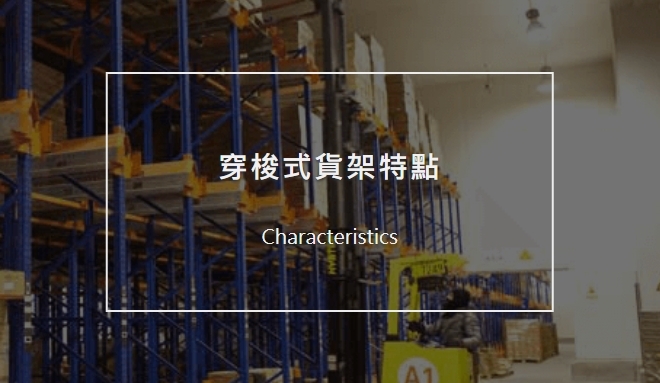

Dense storage, double capacity
The unit projected area obtains higher storage space, reduces the ineffective space such as the roadway of the forklift, and improves the utilization rate of the warehouse.密集存儲、容量倍增
單位投影面積獲得更高倉儲空間，減少堆高機巷道等無效空間，提高倉庫利用率。Safe storage, reduce loss
The forklift does not need to drive into the rack, which can effectively reduce the loss of goods during the operation and ensure the safety of personnel.安全倉儲、降低損耗
堆高機無需駛入貨架內部，可有效降低
作業過程中的貨物損耗確保人員安全。Fast access, doubled the efficiency
The storage and retrieval efficiency is several times higher than traditional shelves, and it is especially suitable for storing large quantities of goods with unified item.快速存取、效率倍增
存取效率高於傳統貨架數倍，尤為適用於存取大批量且品項單一的貨物。Independent power supply, stable operation
Each shuttle has an independent power supply. The battery can charge separately to avoid the trouble caused by power interruption.獨立電源、穩定作業
每台穿梭車擁有獨立電源並且電池可單獨充 電，避免電力中斷而帶來的困擾。Automatic and efficient, lower cost
The efficient operation mode can effectively reduce the workload of warehousing personnel, and keeps maintenance costs lower.自動高效、成本更低
高效作業模式可有效減少倉儲人員的工作量，且後期維護成本更低。Lithium manganese battery, environmental protection, and durable
The shuttle adopts environmentally friendly lithium manganese batteries, which has longer durability.鋰錳電池、環保耐用
穿梭車採用環保鋰錳電池，續航能力及耐用性更強。
Specification 技術參數
• 1000~1500kg per load
• Empty cart traveling speed 0.7-0.8 m/s
• Full load cart traveling speed 0.6-0.7 m/s
• Power unit: lithium battery
• Battery life is greater than 8 hours
• The remote sensing range is 50 meters• 載重1000~1500kg
• 空載運行速度0.7-0.8米/秒
• 滿載運行速度0.6-0.7米/秒
• 動力單元：鋰電池
• 電池續航時間大於8小時
• 遙控感應範圍50米Function 功能
• Single pallet per trip
• Single/continuous automatic pickup
• Automatic pickup of a specified quantity
• Transporting good to another side
• Manual advance and retreat, lift, etc.
• Automatic return when the battery is low• 單次存儲貨物
• 單次/連續自動取貨
• 指定數量自動取貨
• 貨物移動換邊
• 手動進退、升降等
• 電量不足自動返回Battery Advantages 鋰電優勢
• Long duration, performs 8 hours per shift cold storage operations
• Long service life, more than 1000 recharges
• Small size, lightweight
• Safe, environmentally friendly, and pollution-free• 續航力高，即使冷庫作業也可滿足每班8小時
• 使用壽命長，充放電大於1000次
• 體積小，自重輕
• 安全、環保、無污染

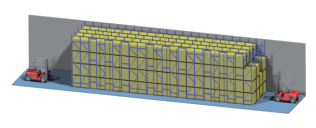

先進先出 FIFO
There are aisles at both ends of the rack.
The shuttle stores and delivers pallets at both ends.
貨架兩端留有通道，利用穿梭車，在兩端分別進行存入或取出的操作。

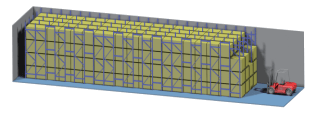

先進後出 FILO
There is a pathway at the end of the rack.
The shuttle transfers the storage items out.
在貨架一端留有通道，利用穿梭車，對貨物進行先存入後取出的操作。
存貨
Loading
存貨時，堆高機將貨物放在貨架巷道導軌最前端，通過無線電遙控器操作的穿梭台車，可以承載棧板貨物在導軌上運行。
移動台車
Transferring
通常堆高機可將穿梭台車放置於不同巷道，多個巷道可以共用一部穿梭車。穿梭車的數量由巷道深度、貨物總量、出貨批量、出貨頻率等綜合因素決定。

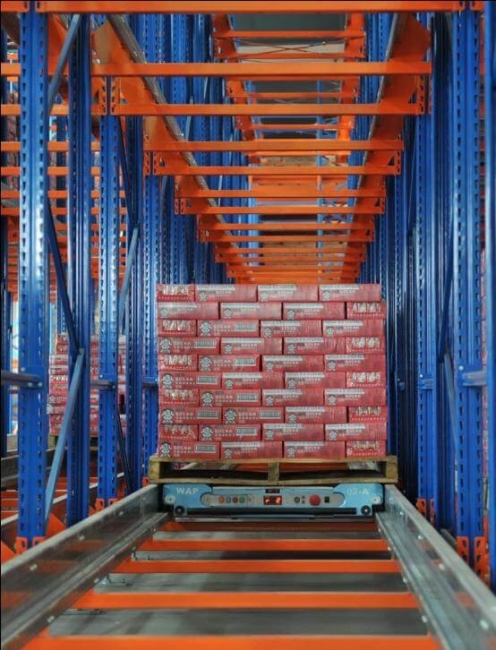

取貨 Picking
取貨時穿梭台車將貨架深處的棧板移動至貨架最前端，用堆高機將棧板貨物從貨架上取下。

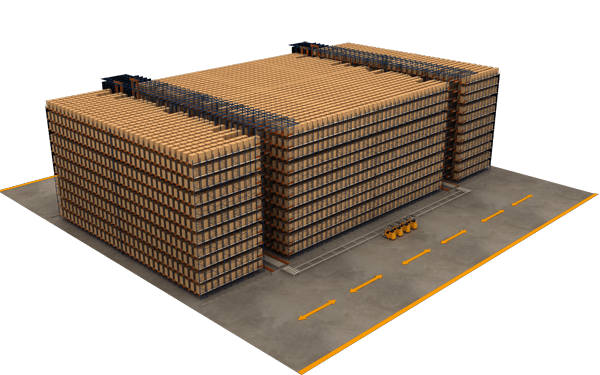

穿梭式自動立體倉庫
AS/RS with shuttle storage system
智能穿梭車在 WCS 層面與立體倉庫堆垛機協同作業，共同管理庫區的所有貨位，將堆垛機管理縱深成幾十倍增加。

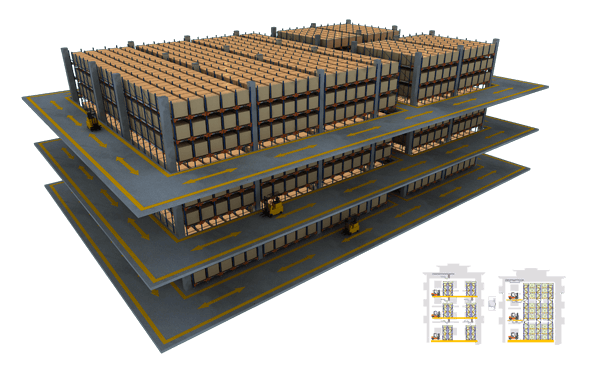

穿梭式多層倉庫系統
Multi-storey warehouse with shuttle storage system
傳統多層倉庫建築，在高度方向上疊加單層倉庫，以達到充分利用土地之目的。由於建築樓層的高承重要求，建築成本較高，高度方向上也浪費大量空間。
-
